Strahler für Außenbeleuchtungen SMARTSPOT 50 ON-OFF

für Innenbeleuchtungfür BootBeleuchtungen

Product overview

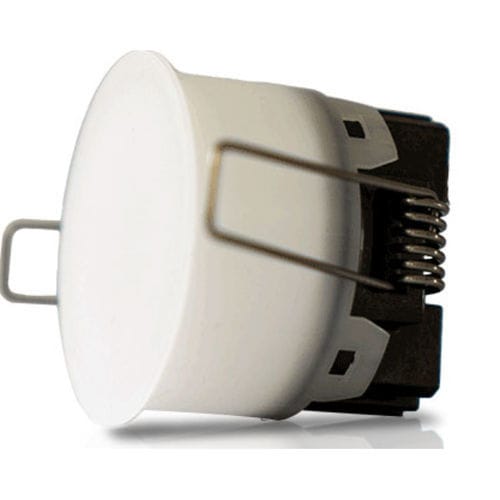

SMARTSPOT 50 ON-OFF. The ultimate recessed downlight generation with embedded electronics and latest-generation LED technology. Designed to be smart, compact and boat-safe.

Ghost shape
Thanks to an adaptive shape it can be installed both with an additional classic frame or totally without frames, offering the possibility of being invisible when turned off. The frame is customizable and must be ordered separately if required.

Homogeneous light surface
The technological material used for the lens delivers an incredibly homogeneous enlightened surface; when turned off the lens completely hides internal components for an elegant, clean appearance.

Powerful light
Light is emitted by 8 OSRAM LEDs arranged following a luminous flux study to obtain the best result. Standard white temperature is 3.000K but can be customized on request.

No galvanic currents or corrosion
The total plastic body eliminates the risk of galvanic current generation and potential corrosion, making the downlight safe for marine use and preserving its new look.

Fade in / fade out effect
Both switching ON and OFF occur with a smooth fade in / fade out effect to soften light transitions and reduce eye strain.

Robust electronics
Automotive-certified electronic components ensure resistance to battery voltage peaks. The device includes automatic shut-off protection to prevent damage in case of overvoltages, extending product life.

Compact and lightweight
Thanks to accurate design SMARTSPOT has a total height of just 44.4 mm and uses plastics for screen and heatsink to keep weight very low, suitable for installations with limited space.

Waterproof and compliant
Degree of protection IP68 allows installation in internal rooms and external corridors. The product is EMC compliant (2014/30/EU) and RoHS compliant (2011/65/EU).

Caractéristiques / spécifications techniques

• Product code: SLMXWHI01
• Denomination / Model: SMARTSPOT 50 ON-OFF
• Luminous intensity: 400 lm (WHITE)
• Light source: 8 OSRAM LEDs (standard 3.000K, other white temperatures available on request)
• Power supply: 24Vdc (suitable for 24Vdc systems; can be used on 230Vac with additional power supply unit)
• Output power: 4,8 W
• Absorption: Max 0,20 A @ 24Vdc
• Driver type: internal (embedded electronics)
• Dimmable: Yes, true deep dimming mode (0–100%)
• Fade in / Fade out effect: Yes
• Operating modes: ON/OFF and dimming
• System typology: Standard
• Protections: polarity reverse, overheating, short circuits, electrostatic charges, voltage peaks; contains automotive-qualified electronic components
• Resistance to voltage peaks: up to 60 Vdc (device automatically shuts down from 32Vdc up to 60Vdc to prevent damage)
• Lens material: technological plastic
• Heatsink material: dissipative plastic
• Body: total plastic to prevent galvanic currents and corrosion
• Projector dimensions: diameter 50 mm x thickness 44,4 mm
• Waterproof: IP68
• Compliances: RoHS (2011/65/EU), Electromagnetic compatibility (2014/30/EU)
